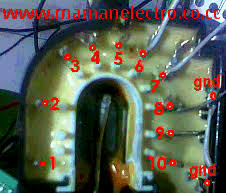

Berikut ini adalah beberapa data pin dari kaki Flyback:
F0101 KM-SA sharp 14R20
F0102 KM-SA sharp 20R20B, 20R200, 51R200
C_B+_GND_24V_16V_AFC_180V_GND_HT_ABL
FA122WJ-B
C_B+(130V)_GND_24V_NC_AFC_180V_GND_HT_ABL
F094
FA061 WJ-SA sharp 51X200
C_B+(130V)_GND_24V_12V_AFC_185V_GND_HT_ABL
F0122 PE-M sharp 20Q250
C_B+_24V_16V_NC_AFC_GND_HT_180V_ABL
F0147
C_B+_GND_24V_16V_AFC_180V_GND_HT_ABL
F0194 PEN1-SA sharp 20R200MKII, 51U200, 20W200
F2037 PE-B sharp 20AG2-S
C_B+_GND_40V_16V_AFC_180V_GND_HT_ABL
FA011 WJ-B sharp
C_B+_GND_24V_16V_AFC_180V_NC_HT_ABL
FA060 WJ-SA sharp 14S20MKII
C_B+_CND_NC_12V_AFC(-12V)_180V_GND_HT_ABL
FA113 WJ-B sharp 51DXF250E
C_B+_GND_24V_NC_AFC_180V_GND_HT_ABL
F0193 PEN1-SA sharp 14U15
C_B+(115)_GND_40V_12V_AFC_180V_GND_HT_ABL
154-064P Goldstar
154-177B
FCK-14B047
C _ 180v _ B+ _ Gnd _ 16v _ 24v _ 40v _ Abl _ Heater _ Afc
F 0101KM-SA
F 0141 PE-M
C _ B+ _ Gnd _ 24v _ 16v _ Afc _ 180v _ Gnd _ Heater _ Abl
K 148 TC
C – 180v _ B+ – Gnd _ Afc _ 16v _ Abl _ Heater _ Nc _ Nc
FCG 2045 BL
Afc – 16,5v _ Heater _ Boost-up _ B+83v _ Gnd _ Nc _ C _ Abl _ 175v _ 24v
FSA 16012M
DCF 2077A
DCF 1577
FSA 16012M
C – B+ – Afc _ Boost-up _ 16,5 _ Abl _ 25v _ Gnd _ 185v _Heater
JF 0501-1206 sansui
C _ B+ _ 180v _ 16v _ 25v _ Heater _ Gnd _ Abl _ Afc _ Nc
JF0601-19577 (polytron)
C_B+_gnd_200v_nc_Ht_nc_abl_+12_-12
FCK 14A006 digitec, polytron
FCM 2015HE
FCM 14A032
C _ B+ _ Abl _ 24v _ Heater _ 16v _ 180v _ Gnd _ Nc _ Abl
FCM-20B061N (polytron)
c_B+_gnd_185_nc_Ht_Nc_abl_+12_-12
FUY-20C009 (akari)
C_180_B+_gnd_nc_24_nc_abl_Ht_afc
BSC 65A changhong
C _ B+ _ 190v _ Gnd _ Nc _ Nc _ 14,5v _ Abl _ Heater _ Afc
154 – 132A intel
154 – 132C
C _ 40v _ 16,5 _ Heater _ Gnd _ B+ _ 180v _ Gnd _ Abl _40v
FCK 1411 L 01
FCM 14A025
C _ Boost-up _ Abl _ B+ _ Gnd _ 180v _ 24V _ Heater _ Afc _ 16,5v
154 189H
154 277C
FCM 20B027
C _ B+ _ 180v _ 16v _ 24v _ Heater _ Gnd _ Abl _ Afc _ Nc
MC – FBC-015
LCE CF0854
C _ B+ _ Gnd _ Afc _ 185 _ Heater _ 25 _ 15 _ Gnd _ Abl
FSV – 20A001 samsung
FCK – 14A033
FSV – 14A001
C _ B+125v _ Abl _ Nc _ Gnd _ 185 _ 46 _ Heater _ Nc _ 16,5
FTK-14A004P (samsung)
C_B+125v_ABL_ Nc_ Gnd_ 180v_24v_Ht_afc_16,5
8-598-858–00 sony KV-PG21P70
8-598-811
C _ B+135v _ 200v _ Heater _ Gnd _ -16,5(vertkl) _ Gnd(vertkl) _ +16,5(vertkl) _ Nc _ Abl
8-598-960-00 sony KV-G21P1
C_b+115V_200V_ht_ gnd_-13v_gnd_+15v_nc_abl
TFB 4125 DY (thosiba)
TFB 4125 HY
C _ B+ _ 180 _ Gnd _ Nc _ 26v _ 12v _ Abl _ Heater _ Afc
BSC 22-01-06
BSC 25-48
BSC 25-4803
BSC 24-01N362
C _ B+ _ Nc _ afc _ gnd _ Heater _abl _ nc
BSC 24-01N4014K tv china
BSC 25-T1010A
BSC 25-09N21A
BSC 25-05N2110A
BSC 25-09N20E
Tep _ C _ Tep _ B+ _ Tep _ Tep _ gnd _ Heater _ abl _ 180v
BSC25-2678S konka K2169TC
C_200v_B+_ gnd_afc_16v_abl_ht_nc_nc
JY0301-0206 tv china 29
C_B+_nc_afc_gnd_HT_abl_tep_tep_tep
DCF 2217J
C _ B+ _ afc _ boost-up _ 16,5 _ 24 _ abl _ gnd _ 200v _ heater
